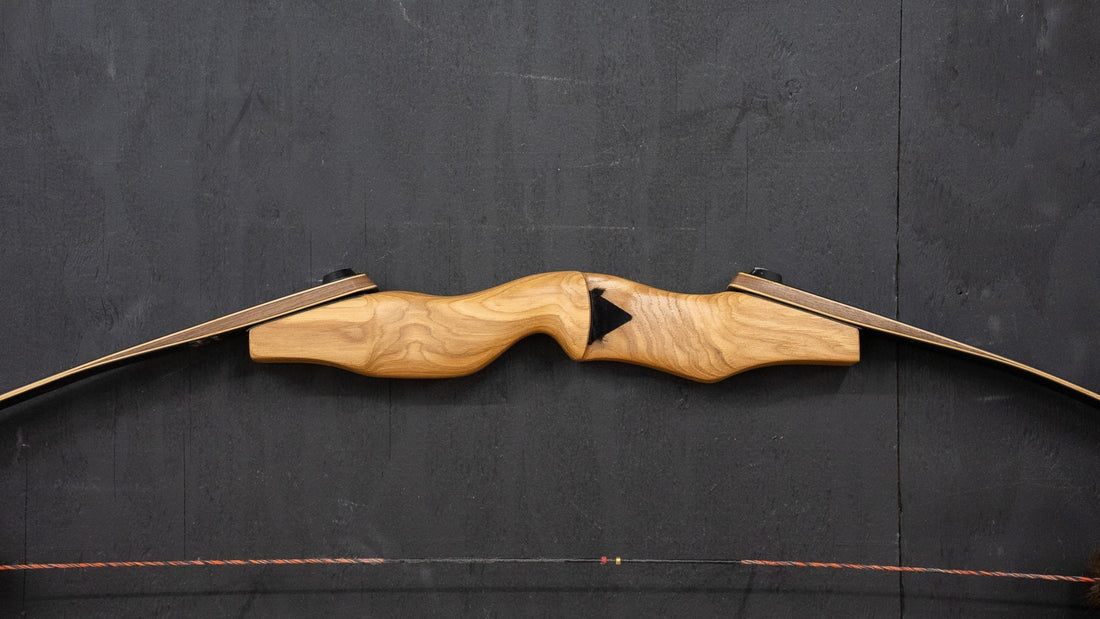

Building a three-piece takedown bow is one of the most rewarding projects in traditional archery—but it also comes with a few challenges. One of the biggest frustrations for many bowyers is getting the limbs perfectly aligned. The good news? It’s usually a simple fix.
In this stage of the build, we’re dialing in limb alignment, correcting common fitment issues, and tapering the limbs for a clean, professional result.
Why Limb Alignment Matters
Once the limb bolts are installed, the next step is checking whether the limbs line up straight with the center of the bow. A quick way to do this is by running a string or chalk line down the centerline of the riser and limbs.
If the string isn’t centered, one limb may be shifted slightly to one side. In the example from the build, the limb was sitting roughly half an inch too far to one side.
This problem is extremely common on three-piece takedown bows, especially for newer builders.
The Simple Fix: Repositioning the Locator Pin
Fortunately, this issue usually has nothing to do with the structural integrity of the bow. The alignment pin is simply a locator pin—it positions the limbs consistently but doesn’t carry the draw load itself.
The solution is to slightly move the locator pin hole.
In the build example, the hole only needed to shift about 1/16 of an inch. The old hole was filled using a tapered dowel made from matching riser scrap material, glued in with CA glue and accelerator for a quick setup time.
Using matching wood helps the repair blend in almost invisibly after sanding.
Once the hole is plugged and flattened, a new pin location can be marked and drilled. Even though part of the original dowel remains, the adjustment is enough to bring the limb back into alignment.
The entire repair can take less than 10 minutes.
Watch for Limb-to-Riser Interference
Another issue that can throw off alignment is interference between the limb and riser surfaces. If there’s a small gap between the two, it may not actually be an alignment problem at all.
Often, a sharp corner on either the riser or limb is preventing full contact. Lightly rounding over that edge on a belt sander can eliminate the issue and allow the limbs to seat properly.
Before making major adjustments, always double-check that the limb is fully seated against the riser.
Tapering the Limbs
Once alignment is correct, the limbs can be tapered.
In this build, the limbs are marked from a half-inch tip tapering wider toward the handle area.
One major advantage of gluing the limbs up square before tapering is flexibility. If alignment ends up slightly off, you still have enough material width to adjust the taper and recover a straight limb.
Pre-tapered limbs, on the other hand, require much more precision before hardware installation because there’s less material available for correction.
Band Saw or Belt Sander?
There are a couple common ways to taper limbs:
- Band saw — Faster and efficient
- Belt sander — Slower, but often safer and easier to control
The key isn’t necessarily the tool—it’s the layout work beforehand.
A Small Detail That Makes a Big Difference
One of the most overlooked lessons in bow building is line thickness.
A Sharpie line may seem insignificant, but it can easily be around 1/10 of an inch thick. If you don’t decide whether you’re cutting to the line or through the line, your final dimensions can end up dramatically different.
That small difference matters in bow limbs.
Many experienced builders prefer removing the line entirely because it creates a cleaner visual result and leaves no layout marks behind.
Final Thoughts
Three-piece takedown bows can feel intimidating at first, especially when alignment issues appear. But most problems are fixable with small adjustments and careful layout work.
A few important takeaways:
- Alignment problems are common and usually repairable
- Locator pins are adjustable without weakening the bow
- Limb/riser gaps can mimic alignment issues
- Leaving limbs square before tapering provides more forgiveness
- Precision marking matters more than most people realize
Taking extra time during layout and alignment will save countless headaches later in the build—and help produce a cleaner, straighter, better-shooting bow.
